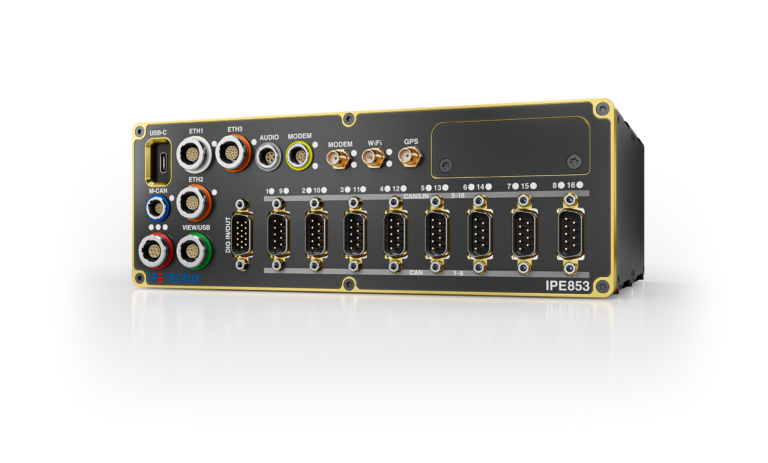

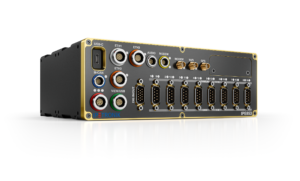

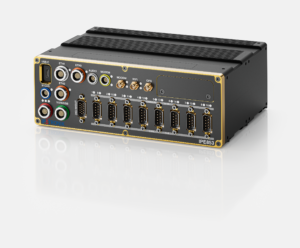

A new datalogger, the IPE853, has been introduced by measurement technology company Ipetronik, targeting fleet testing in extreme conditions. This device, designed to endure both high- and low-temperature environments, is able to assess both whole vehicles and specific components.
The IPE853, featuring a x6425RE processor, delivers a performance index of 2935 and is equipped to handle all current automotive networks. It utilizes aluminum housing which ensures resilience in harsh environments, making it functional within a temperature range of -40 to 80°C and a relative humidity of 5 to 95%.
The processor also adheres to the IP54 protection class, able to withstand tough automotive environmental conditions both inside and outside test vehicles.
Features and applications
The datalogger features 3 x 1GbE inputs, 16 x CANFD SIC inputs (with eight switchable to LIN via software), and options for USB-C, 4G modem, wi-fi, Bluetooth and GNSS. It also has a data storage capacity of up to 1TB of data and 16GB of internal RAM, according to Ipetronik.
The IPE853 is suitable for use in hybrid and electric vehicle testing due to its low power consumption of approximately 16W. It can record a range of physical variables such as voltages, currents and temperatures, particularly when paired with Ipetronik HV measurement modules and M-Thermo3 16 temperature measurement modules.
Data management is supported through the use of the IPEmotion RT data logger software, which is designed to facilitate fast configuration, data acquisition and evaluation. It also features a mobile app and cloud connectivity.
